Data Plus Size 5
Valuables:
£40000
Fire Time:
120 Minutes
Lock Type:
Certified Key (inc.2 keys)
Weight/Size:
860(KG) / 1941 (H) 1036 (W) 830 (D)
Fixings:
To Floor
Top Pick
- Protection
- By Size
AvailabilityIn stock
SKU
DATAPLUS-5
IN STOCK
Special Price
£13,068.00
£10,890.00
Regular Price
£14,520.00
Transparent Pricing
No extra charges
Free indoor delivery*
*Ground floor only (max 2 steps)- Weekday Services (9am - 4.30pm)
- Indoor Delivery Service - Installation FREE
- (please allow 5 - 10 working days for installation)
Summary

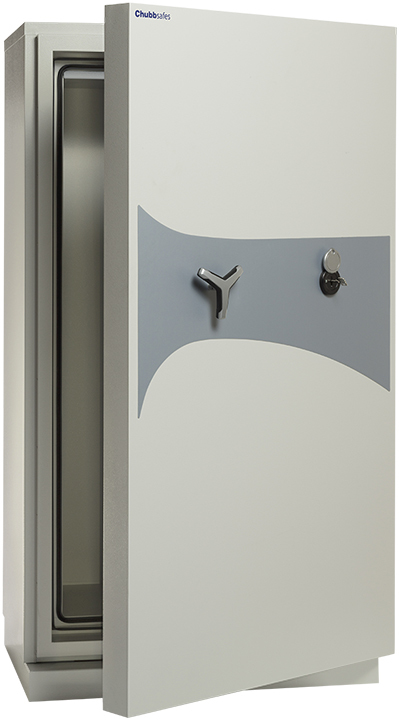

Chubbs largest DataPlus cabinet offers maximum fire resistance and good security protection. ChubbSafes premier data safe, 2 hour fire test for media and document protection. Plus S2 security tested, offers good security for cash and valuables. £4000 cash rating and £40,000 valuables cover. Can be customised with various internal fittings. Base fixing.
Details
- Protects (from fire damage)
- Documents & all Digital Media
- Features
- Good Security Level
- Finish
- Light Grey (RAL 7035)
- Popular for
- Office Safes
- Warranty
- 2 Year Warranty
Dimensions & Weights
- External Dimensions (mm)
- 1941 (h) x 1036 (w) x 830 (d)
- Internal Dimensions (mm)
- 1570 (h) x 780 (w) x 450 (d)
- Volume
- 556 Litres
- Weight
- 860 Kg
Protection
- Resistance
- Fire & Burglary
- Security
- S2 Tested
- Fire
- Fire Tested - 2 hour fire endurance
Construction
- Door
- Composite 185mm total thickness
- Body
- 125mm composite
- Bolt Work
- 20mm diameter locking bolts, Hardened steel plates protect bolt work & lock against drilling.
- Design
- Secure Protection for Cash | Valuables | important Documents.
Additional security protection – facility to install to floor.
Lighter weight construction ensures an easier installation.
Easy slam-action for emergency closing.
Additional protection - protects magnetic media. - Locking
- Certified double bitted key lock (inc.2 keys)
Features We Love
Good security protection to deter burglars
- Maximum fire protection safeguarding items from fire damage
Size Ratio
Accreditations
UK Insurance Surveyors Approved
Secured by Design meets Police Approved Standards
Key Lock Details
- Key Type
- 8 lever double bitted
- Security Certification
- EN 1300 Class A
- Make
- Mauer
Certifications
- Burglary Certificate
- EN 14450 S2
- Fire Certificate
- EN 1047-1 S120 DIS Protection (Media)
- Fire Certificate
- UL 72 Class 125 2hr Protection (Media)
- Fire
- Tested by UL
- Burglary & Fire
- Tested by ECBS
Testing Criteria
- Burglary Testing
-
Safes are tested for anti-burglary protection at certain cash ratings and when succesfull awarded the relevant grade/rating.
There are two anti-burglar test standards in use in Europe.
EN 14450 (for lighter security safes, security cabinets) and EN 1143 (for high security safes).
Choosing a safe with a burglar test certificate from a recognised testing authority ensures you’re getting the best security protection for your cash, jewellery and valuables.EN 14450 LEVEL S2
A range of hand tools available for the attack test, can include cordless drills, short hammers, crowbars, screwdrivers, bolt croppers and punches.
- Fire / Documents Testing
-
The longer the period in minutes, the greater the fire resistance offered.
The critical temperature before paper documents combust is 177°C.
Choosing a safe with a fire test certificate from a recognised testing authority ensures you're getting the best fire protection for your valuables. - Fire / Media Testing
-
The longer the period in minutes, the greater the fire resistance offered.
Data Media such as CD / DVD USB Sticks spoils at temperatures over 65°C and delicate Diskette Media (magnetic strips) corrupts at a lower temperature of 52°C or humidity over 85%.
Choosing a data safe with a fire test certificate from a recognised testing authority ensures you're getting the best fire protection for your data, media records.EN 1047-1 S 120 DIS Protection (Media)
ECB•S (European Certification Board•Security Systems) - EN 1047-1 DIS fire standards.
Products are thoroughly fire tested.The product's internal temperature is monitored after furnace heating until it returns to ambient levels (a period known as “soak out”). Assessing products during this period is important since internal temperatures can peak up to 6 to 8 hours after a fire has been extinguished. Such a test ensures that all products are comprehensively tested.
STAGE 1 The cabinet is placed in a furnace and heated to a temperature of almost 1000°C for 120 mins to simulate the effects of a severe fire.
STAGE 2 The cabinet is removed from the furnace and cooled. When opened, the inner temperature of the cabinet must not exceed 50°C and the maximum relative air humidity remains under 85%.
UL 72 Class 125 2 hr Protection (Media)
UL (Underwriter's Laboratories) - 72 Class 125 Media fire standards.
Products undergo an extensive two-step fire testing process.STEP 1 The product is placed in a furnace and heated to a temperature of 1000°C. The furnace is switched off after 120 minutes. The unit remains in the furnace until the temperature returns to ambient levels (a period known as “soak out”). Assessing products during this cool down is essential, since internal temperatures can peak up to 6 to 8 hours after a fire has been extinguished. Both during furnace heating and the subsequent cooling period, the recorded internal temperature must not have exceeded 125°F (52°C).
STEP 2 Fire explosion or Shock test. To simulate rapid heating, the cabinet is inserted into a preheated furnace. The stresses and strains created by such rapid heating can easily cause a poorly constructed unit to fail. At no point are internal temperatures allowed to exceed 125°F (52°C).
The following options can be selected at checkout.
Additional Keys
Two keys are included as standard but additional keys are available if required.
Allow 3 additional days for delivery.
1 Key : £66.67 (£55.56 ex VAT)
2 Keys : £133.34 (£111.12 ex VAT)
Electronic Lock (2 user code)
Upgrade to a battery powered electronic keypad with 2 programmable pin codes.
Electronic lock : £413.34 (£344.45 ex VAT)
Adjustable Shelf
Organise the safe interior and maximise the use of your storage space with an extra adjustable shelf.
1 Additional Shelf : £66.67 (£55.56 ex VAT)
2 Additional Shelves : £133.34 (£111.12 ex VAT)
3 Additional Shelves : £200.02 (£166.68 ex VAT)
Pull-out Tray Cradle
Organise the safe interior and make it easy to store items with a Pull-out Tray.
1 Pull-out Tray : £240.00 (£200.00 ex VAT)
2 Pull-out Trays : £480.00 (£400.00 ex VAT)
3 Pull-out Trays : £720.00 (£600.00 ex VAT)
Fitted Double Door lockable cupboard
Improve the interior & add extra security with a double door lockable cupboard. (Complete with 2 keys)
Yes : £600.00 (£500.00 ex VAT)
Delivery Info (available options – selectable at checkout)
| Indoor Delivery Service | Notification | Delivery Window (between) |
Time Slots | Price |
|---|---|---|---|---|
England, Wales & Central Scotland |
||||
|
Professionally installed on any floor with maximum of 1 step or by lift |
Pre-booked |
Mon - Fri (within 5 - 10 working days) |
9am – 4.30pm |
FREE |
Installation via stairs |
||||
| Survey maybe required | POA | |||
Remote Scottish locations & Islands |
||||
| Northern & Republic of Ireland, Scottish Highlands & Offshore Islands | POA | |||
